Nexx Garage NXG-200, NXG-100 - Recommended Sensor Installation
There are a lot of possible ways to install the sensors, however, the recommended way is to mount them parallel and facing each other (Like a letter "L" facing a mirror) with a clearance of at least 1/8th of an inch and not more than 1/4th of an inch. Not following the recommended placement may cause unstable or incorrect readings.

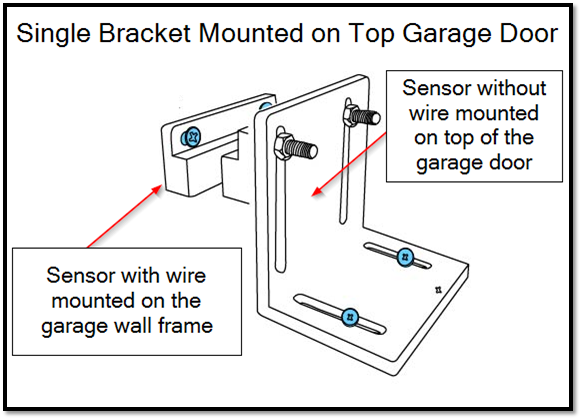

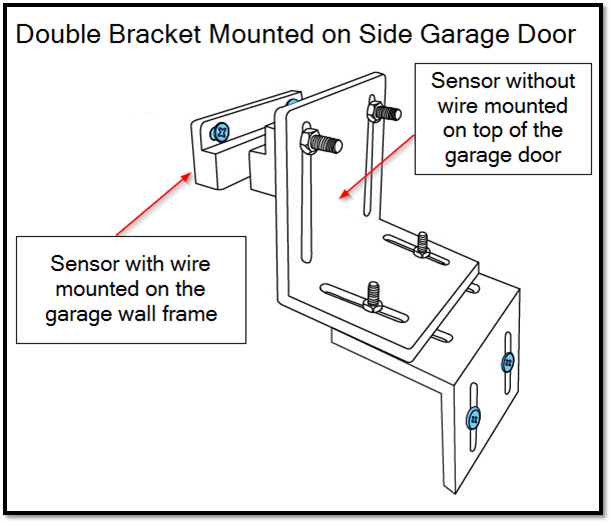

Please see sample pictures below:
